Panasonic VW-VBG130 Replacement Battery User Instructions

• Instructions on Battery Use:

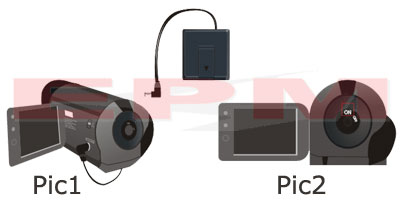

  Load the battery pack onto your camcorder and connect the DC plug of the battery pack to the “DC IN” set of your camcorder (Pic1). Turn on your camcorder and it is ready for filming (Pic2). If your camcorder does not have "DC IN" port, the battery won't work with your camcorder.


• Instructions on Battery Charging:
  1. You can recharge the VW-VBG130 Rechargeable Battery Pack with Panasonic VW-AD21 power adaptor. Please first connect your power adaptor with the AC power outlet (Pic3). Put the DC plug of the battery pack into the power adapter’s DC OUT set (Pic4). Then the battery pack starts recharging. After fully charged (about 5 hours), the battery pack will cut off power supply automatically.


  2. You can also recharge the VW-VBG130 Rechargeable Battery Pack with EPM VW-VBG130 digital battery external charger set. Please first put your charger set onto the power outlet (Pic5), and then load your battery pack onto the charger set. The “Charging” LED light will be turn on RED. It is indicating that the battery pack is recharging. When the battery pack reaches a 50% charged, it will then turn to a tickle-charge mode, and the LED light will be blinking between red and green. After it is fully charged, the LED light will turn on green automatically.




• Battery Charging Tips
  1. We suggest you recharge this battery pack with original or EPM charger. Otherwise it might fail of being recharged or cause damage.
  2. When short circuit happens on the battery pack outlet by accident, the battery pack will turn into Short-Circuit-Protection status and cut-off the power automatically. To restart the battery pack, please wait for 10 seconds and re-plug the equipped cord.
  3. The power effect of the battery pack will be better if keeping the battery pack in the charger for a while after it is fully charged.
  4. Please have the VW-VBG130 Rechargeable Battery Pack recharged before storing up. In order to make the battery resume to the best performance after a long time of storage, you are suggested to recharge the battery pack for about 30 minutes before use.

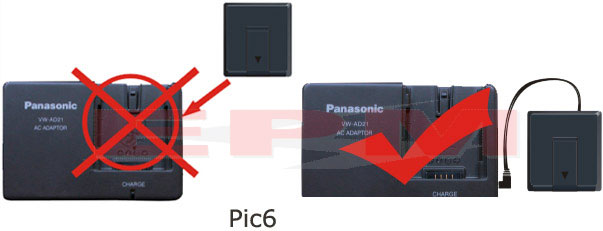

  5. This VW-VBG130 Replacement Battery Pack will not be charged in the original power adapter's charging slot. To charge the battery, please put the DC plug of the battery into the power adapter's DC OUT.


  6. When the battery pack reaches a 50% power charge, it will then turn to a tickle-charge mode, and the LED light will be blinking between red and green.
